In the design and modification of fitness equipment, connection brackets serve the core functions of load-bearing and angular positioning. However, these components are often structurally complex, with spatial angles traditionally measured manually, leading to inaccuracies, incomplete data, and unreliable precision.
Now, the AlphaScan handheld 3D scanner offers a new solution:
✅ Rapid acquisition of complete 3D data

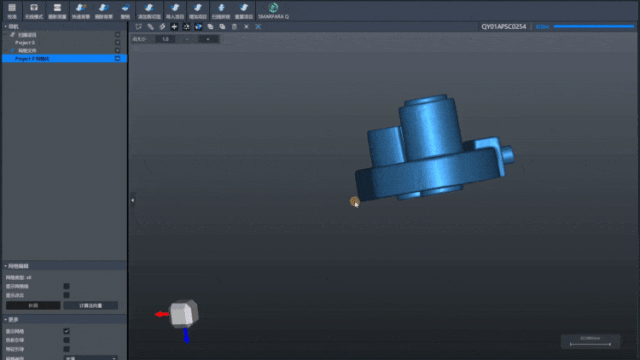

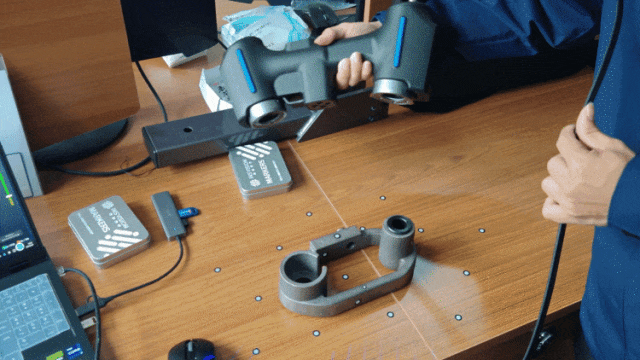

No need for fixed fixtures; a connection bracket can be scanned in minutes, generating a high-precision 1:1 point cloud model. All surfaces, hole positions, and reinforcing ribs are clearly visible.
✅ One-click measurement of spatial relative angles

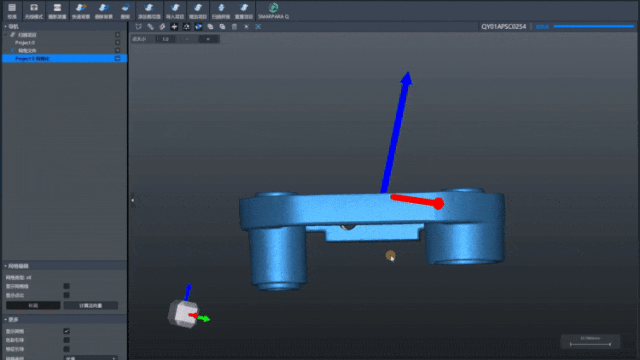

Installation tilt angles, symmetry, and parallelism, once estimated with angle gauges and string lines, can now be precisely captured directly from the 3D model in reverse engineering software, with error controlled within 0.02mm.
✅ Doubled efficiency in reverse modeling
With a real point cloud as the base map, designers no longer work 'blindly.' They can directly fit contours and reconstruct surfaces, ensuring the reverse-engineered CAD model perfectly matches the physical part, significantly shortening the redesign cycle.
A company that designs and manufactures fitness equipment used AlphaScan for reverse engineering an old connection bracket. The newly designed mold succeeded on the first try, required zero filing for assembly, and reduced the development cycle by 60%.
Let every extension and every load-bearing action in fitness equipment begin with precise data. AlphaScan—safeguarding industrial reverse engineering, safety, and precision.
