Apex 3D
Approx. 450 g lightweight body with marker-free high-speed, fine and deep-hole scanning for flexible 3D data capture on the shop floor.
Approx. 450 g lightweight body with marker-free high-speed, fine and deep-hole scanning for flexible 3D data capture on the shop floor.

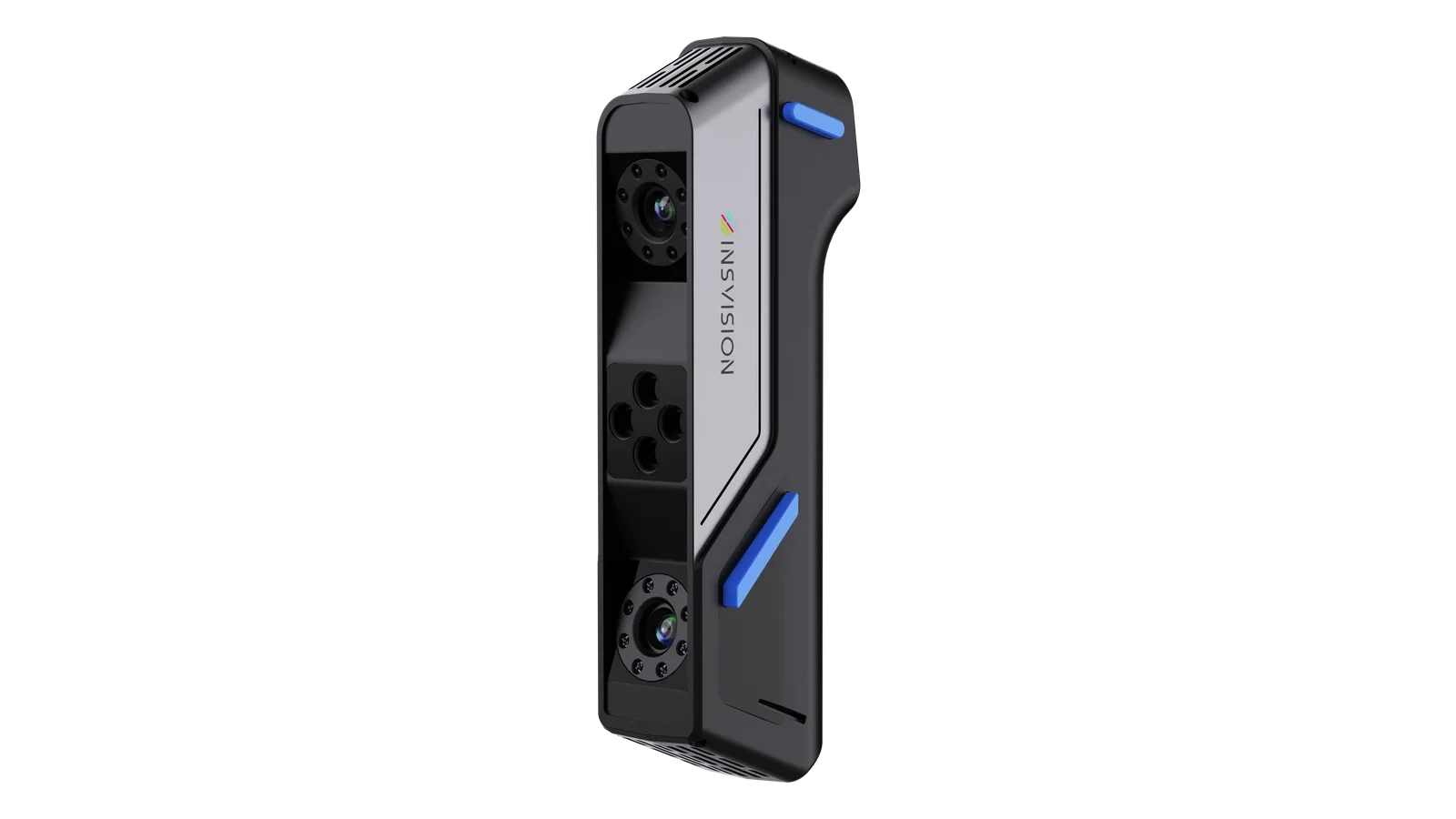

Apex 3D Handheld 3D Scanner
Apex 3D Lightweight and portable, with marker-free scanning for flexible 3D data capture on the shop floor
Lightweight and portable, with marker-free scanning for flexible 3D data capture on the shop floor
Highest Accuracy
0.03mm
Highest Scan Rate
6,500,000 measurements/s
Max Scan Area
1000mm×800mm
Product Weight
approx. 450g
Highest Resolution
0.01mm
Multiple Scan Modes
High-speed scan Fine scan Deep-hole scan
Highest Accuracy
0.03mm
Highest Scan Rate
6,500,000 measurements/s
Max Scan Area
1000mm×800mm
Product Weight
approx. 450g
Highest Resolution
0.01mm
Multiple Scan Modes
High-speed scan Fine scan Deep-hole scan
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Model | Apex 3D |
| Light source (high-speed scan) | 34 crossed blue laser lines |
| Light source (fine scan) | 17 parallel blue laser lines |
| Light source (deep-hole scan) | 1 blue laser line |
| Accuracy | up to 0.03mm |
| Measurement rate | up to 6,500,000 measurements/s |
| Scanning area | maximum 1000mm×800mm; standard 650mm×500mm |
| Laser class | Class II (eye-safe) |
| Resolution | up to 0.01mm |
| Volumetric accuracy | 0.03mm+0.035mm/m |
| Working distance | 300mm |
| Depth of field | 650mm |
| Output formats | STL, PLY, OBJ, TXT, etc. |
| Operating temperature | -10°C to 40°C |
| Product weight | approx. 450g |
| Interface type | Type-C |
| Minimum computer requirements | OS: Windows 10 or later (64-bit); GPU: NVIDIA GTX/RTX series, RTX 4060 or higher; VRAM: 8GB or more; CPU: Intel Core i7-13700H or higher; RAM: 32GB or more |
※ According to VDI/VDE 2634 Part 3 and JJF 1951-2021, the calibration specification for optical three-dimensional measuring systems based on structured-light scanning.
