Reverse Engineering 3D Scanning

Reverse Design

3D scanning for reverse engineering turns existing parts or prototypes into high-accuracy 3D data for point-cloud processing, surface reconstruction and CAD modeling. INSVISION can combine AlphaVista, AlphaScan, V-Track and AlphaAutoScan-400 based on part size, detail complexity and on-site conditions: AlphaVista for large parts and complex surfaces, AlphaScan for fine features and high-accuracy local capture, V-Track for multi-station scanning of large structures, and AlphaAutoScan-400 for repeat parts and batch samples. The workflow supports product replication, legacy-part repair, design optimization and manufacturing preparation.

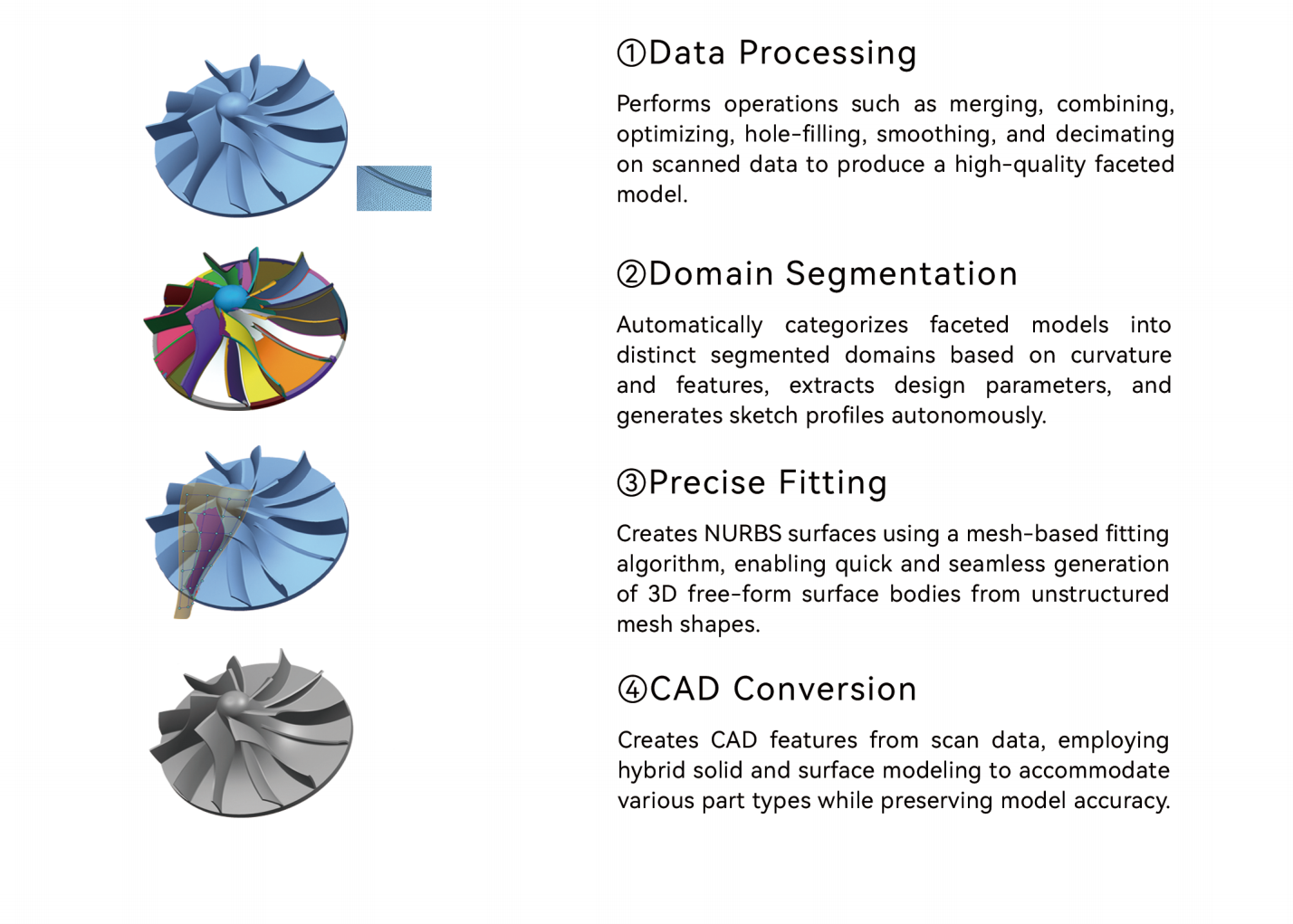

Reverse engineering 3D scanning workflow

Our strengths

Metrology-grade precision guaranteed

High-quality 3D data preserves part contours, fine features and critical mating surfaces, giving later surface reconstruction and CAD modeling a reliable foundation.

Fast and efficient

Scanning, stitching, cleanup and modeling can shorten the cycle from physical part to digital model, improving legacy-part repair, product replication and design optimization.

Multi-scenario adaptability

For small precision parts, large structures, complex freeform surfaces and repeat samples, teams can choose the right device and scanning method for reverse-engineering data capture.

Low threshold, low cost

Compared with manual measurement from scratch or long-term outsourced modeling, 3D scanning helps teams obtain usable data faster and lowers the adoption barrier for reverse engineering.

Application areas
