In industrial 3D scanning, ‘marker placement’ and ‘wired connections’ have long been unavoidable tedious steps in large workpiece inspection. Whether for automotive body-in-white, wind turbine blades, or aerospace structures, applying markers before inspection often consumes a large portion of the total time. But this is only the surface.
The deeper question is: Is a 3D scanner merely a data acquisition tool, or can it truly embed itself into enterprise quality control and become a productivity engine that drives decisions?
INSVISION is refreshing industry perceptions with its own answer. Its new-generation metrology-grade optical tracking device V-Track not only solves the efficiency pain point with its core capability of ‘no markers, dual-wireless freedom,’ but also deeply integrates AI algorithms with metrology-grade precision at the foundational level, moving 3D scanning from ‘can scan’ to ‘scans accurately.’
Deployment Validation Checklist
| Focus Area | Decision Point | Deployment Note |
|---|---|---|
| Target part | Check size, surface condition, and key tolerances against the scan task | Run a full trial scan on a representative part |
| Data workflow | Verify point cloud, deviation map, and quality-report handoff | Confirm export formats and review ownership in advance |
| Shop-floor use | Review training, calibration, lighting, and working space | Keep the validation record as a repeatable inspection reference |
A High-Precision Inspection in Action: V-Track Scans Yage Aircraft

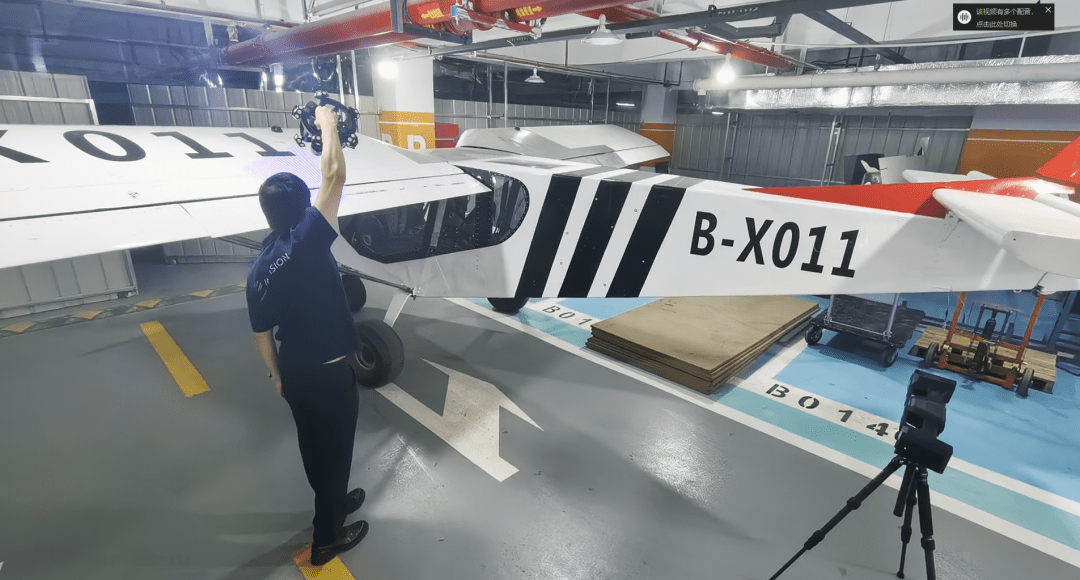

Recently, the INSVISION V-Track tracking 3D scanning system completed a high-precision inspection of the entire structure of a Yage aircraft. Without applying any markers, the inspection team set up the V-Track around the aircraft and used a handheld scanner to capture critical areas such as wing surfaces, fuselage skin, and assembly seams.
The optical tracking system locked onto the scanner’s spatial position and orientation in real time, synchronously acquiring data with micron-level accuracy and performing real-time station stitching. The full 3D model of the aircraft was reconstructed in a short time.
This inspection fully demonstrated V-Track’s practical capability of ‘scan-and-use, no markers, dual-wireless freedom’ in aerospace manufacturing, shifting quality control from experience-based judgment to data-driven decision-making.
Four Core Highlights: Breakthroughs in Accuracy, Range, and Efficiency

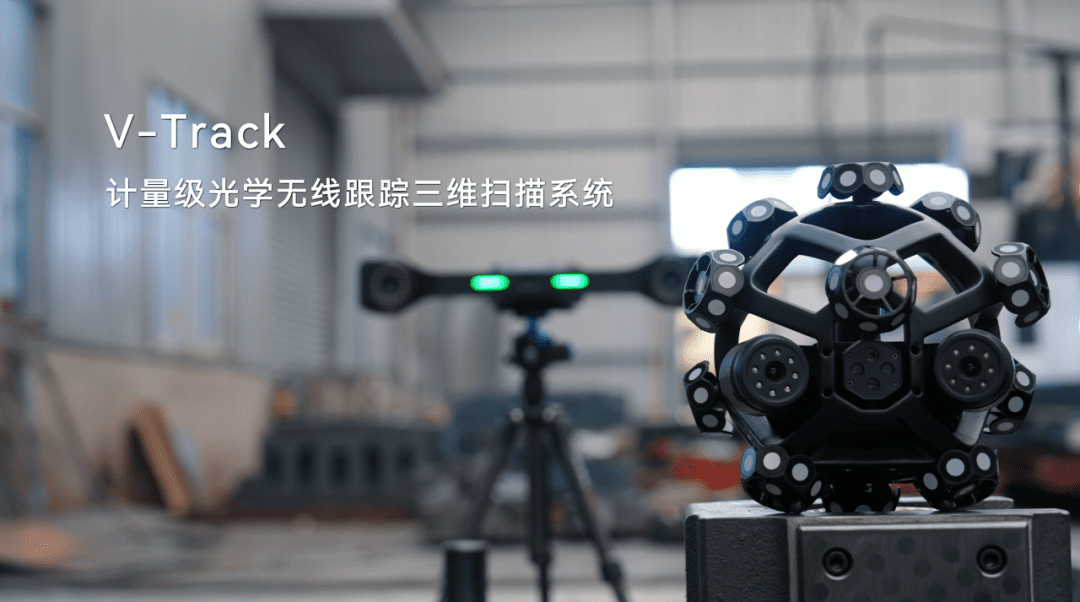

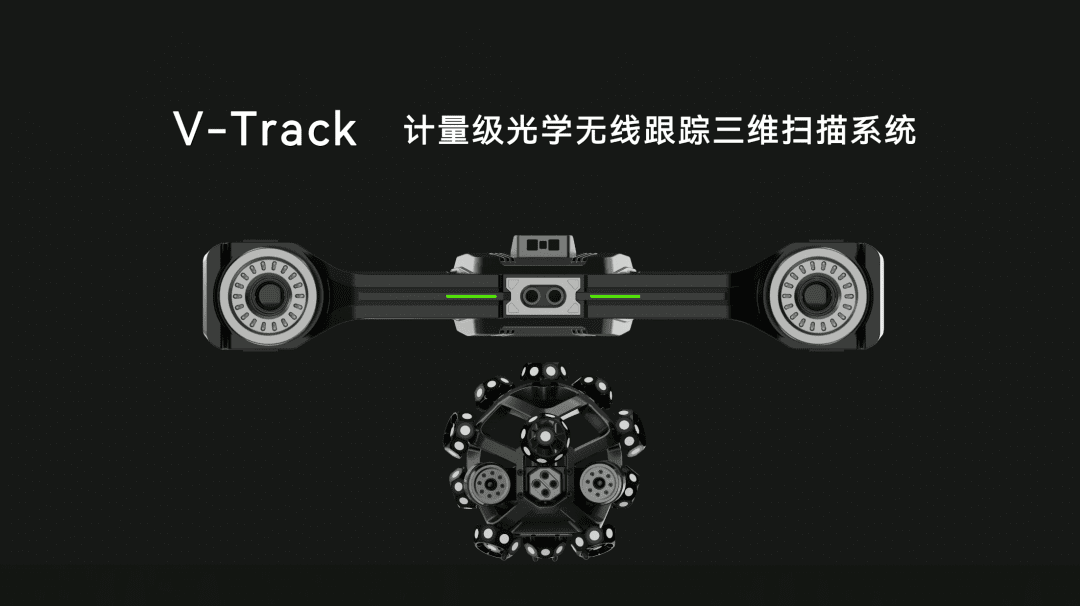

V-Track is a metrology-grade optical tracking device independently developed by INSVISION, designed for large-scale, high-precision measurement scenarios. It uses optical tracking principles to replace the traditional handheld scanning workflow that relies on markers for alignment. V-Track’s core highlights can be summarized in four points:
Highlight 1: Higher Accuracy – Metrology-Grade Positioning Ensures Micron-Level Reconstruction
As a metrology-grade optical tracking device, V-Track’s spatial positioning reference has extremely low error, directly determining the accuracy of the final scan data. It enables stable micron-level 3D reconstruction on high-value workpieces such as aerospace structural parts and large molds.
Highlight 2: Larger Range – Global Tracking Without Blind Spots in Large Scenes

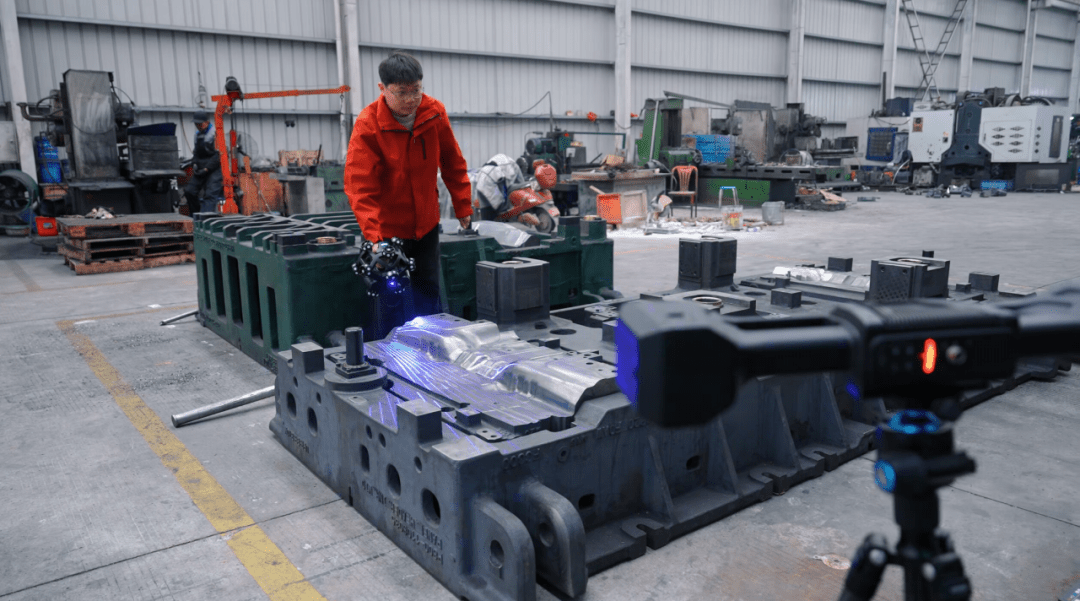

When scanning large workpieces with traditional handheld scanners, cumulative errors gradually appear as the scanning path extends, often requiring dense marker placement on the workpiece surface for global constraint. V-Track, with its long-range, wide-field optical tracking capability, maintains stable positioning accuracy over a larger physical space.
Even when scanning aircraft wings several meters long or automotive side panels, there is no need to worry about data drift or misalignment.
Highlight 3: Faster Speed – Reduce Auxiliary Work, Focus on the Core of Inspection
Inspection efficiency depends not only on scanning speed but also on the time invested in preparation. V-Track completely frees inspection personnel from the low-value-added labor of ‘applying and removing markers,’ allowing them to focus time and energy on the actual inspection analysis, thus achieving an efficiency leap across the entire inspection workflow.
Highlight 4: More Freedom – Completely Free from Cable and Power Constraints.
V-Track uses bidirectional wireless data transmission between the optical tracker and the handheld scanner, with the scanning terminal powered by a built-in battery. Engineers can freely reach any inspection location on large workpieces such as wings and fuselages, unrestricted by cable length or power outlet layout.
The combination of dual wireless capabilities returns inspection to its essence—focusing on data acquisition itself, rather than a working radius defined by physical connections.
Deep Value: From ‘Measurement Tool’ to ‘Productivity Engine’
If we only talk about ‘no markers’ and ‘dual wireless,’ V-Track remains at the level of a ‘better tool.’ But INSVISION aims for the 3D scanner to directly become a productivity engine for enterprise quality control and R&D decision-making.
The key to this transformation lies in closed-loop efficiency. Traditional 3D scanning workflows often stop at ‘obtaining point cloud data,’ with subsequent data processing, comparative analysis, and report generation remaining disconnected steps. V-Track and its supporting software system integrate scanning, analysis, and reporting into a seamless chain.
The 3D INSVISION software includes a one-click jump to measurement software, enabling one-stop inspection and analysis, helping quality teams ‘pinpoint issues to specific dimensions and locations.’ This not only saves time in report generation but, more importantly, provides a direct basis for subsequent process adjustments—inspection is no longer an endpoint but the starting point for production improvement.

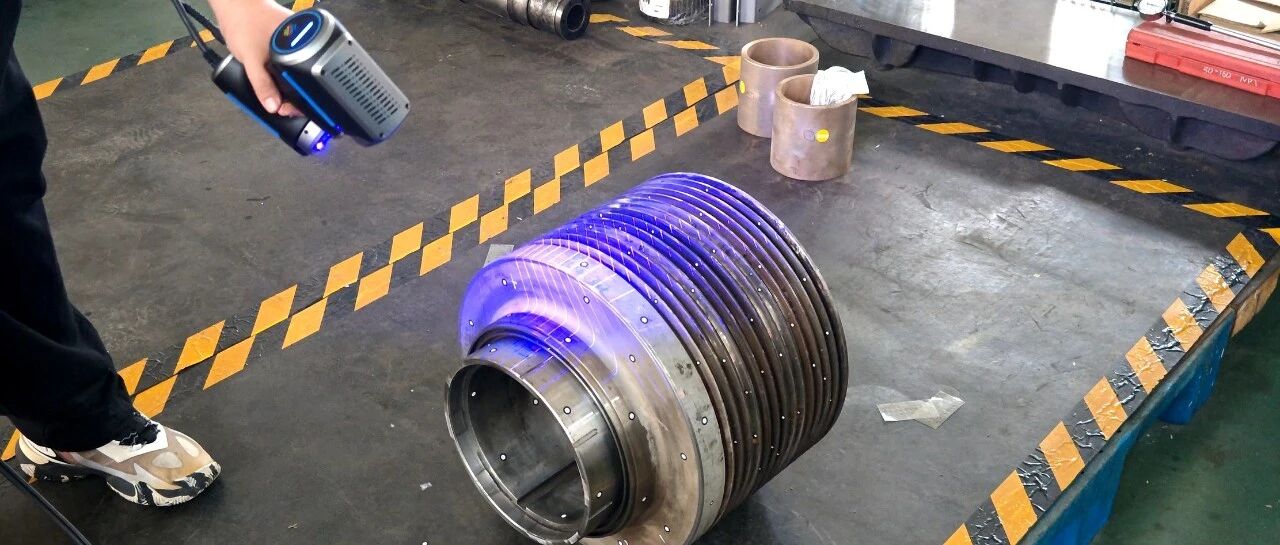

On a deeper level, such devices are moving from the lab and R&D stage to real-time process control on the production line. In high-end manufacturing fields like automotive and aerospace, 3D scanners are gradually becoming ‘process sensors’ beside the production line. INSVISION’s AlphaScan series has been successfully delivered to top-tier suppliers such as ZF for component quality inspection.
This proves that the product path represented by V-Track is not only efficient but also maintains metrology-grade reliability in demanding production line environments, truly achieving the leap from ‘post-inspection’ to ‘process control.’
The ‘Emerging Force’ of Domestic 3D Scanning
INSVISION was founded in October 2021, headquartered in Hangzhou, Zhejiang, and is a high-tech enterprise focusing on 3D machine vision and artificial intelligence.

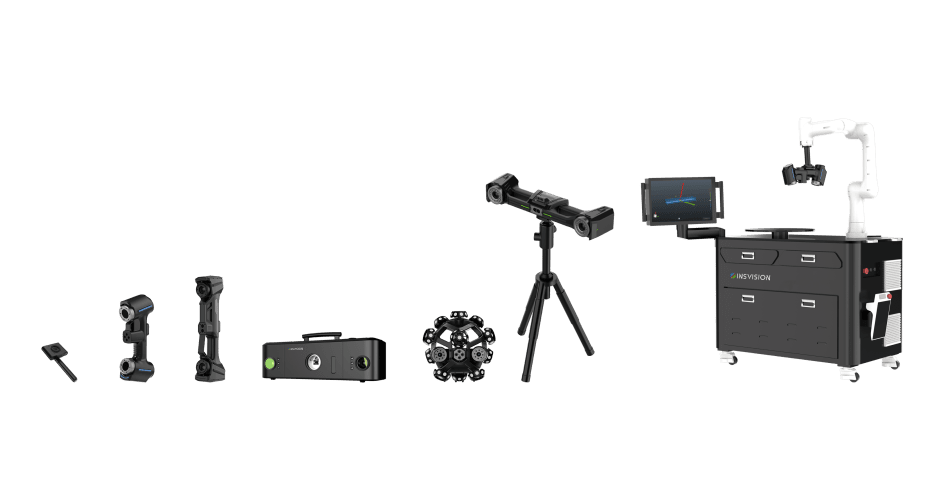

As one of the few domestic companies to independently develop a full matrix of handheld, tracking, automated, and software products, INSVISION is emerging in the industrial 3D digitization field with the dual drive of ‘AI algorithms + metrology-grade precision.’ The launch of V-Track marks a key layout in the tracking scanning technology branch—freeing high-precision inspection of large workpieces from marker constraints while deeply embedding intelligent capabilities into enterprise quality control processes.
From on-site inspection of the Yage aircraft to efficient inspection of C919 skin seams, and to component quality control on ZF production lines, INSVISION’s 3D measurement solutions are being deployed in more and more high-end manufacturing sites.
As domestic 3D scanning equipment moves from the lab to the production line, evolving from ‘tools’ to ‘productivity engines,’ the technological path represented by V-Track—’de-markerization + wireless freedom + AI-driven’—may well be the next important evolution direction for industrial 3D measurement.
