AlphaScan creates an inspection template from the first bumper beam profile, then reuses it for automatic comparison, pass/fail evaluation, and batch report generation.
INSVISION AlphaScan AI metrology-grade handheld 3D scanner delivers high-precision 3D scanning solutions for industrial manufacturing. Focusing on automotive parts inspection, it helps manufacturers achieve efficient quality control through 3D vision technology.
Customer Needs and Pain Points

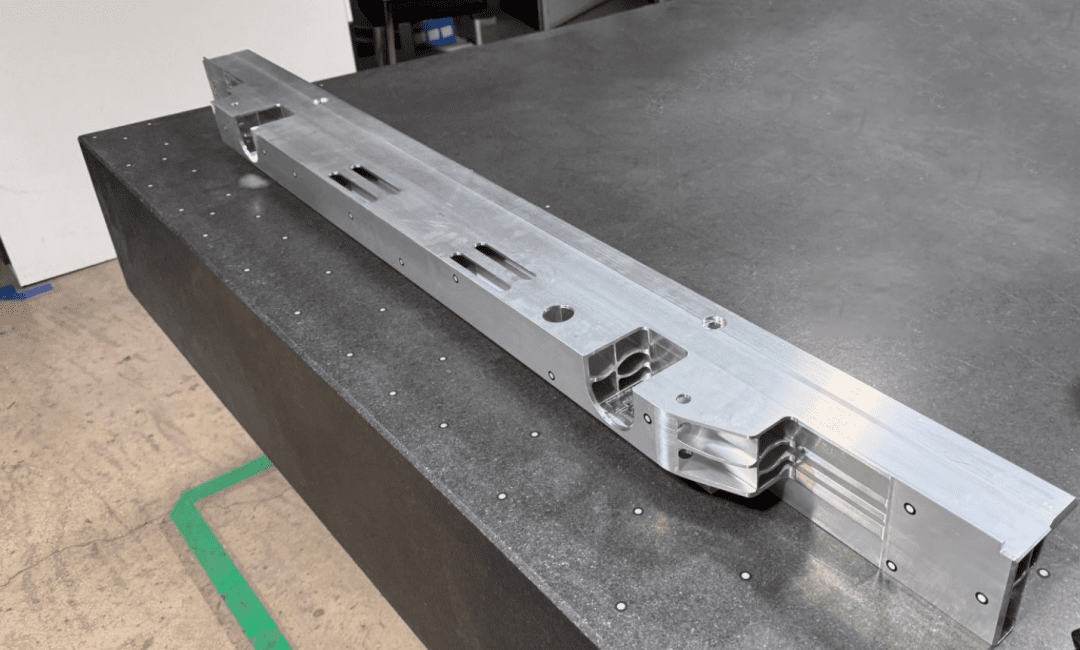

Automotive bumper beam profiles come in various specifications, including straight, curved, and irregular cross-sections. Each profile type has different dimensions, tolerances, and critical features. Whenever the profile type changes, operators must re-set inspection parameters and plan scanning paths. As the variety of profiles grows, a significant amount of time is spent on parameter setup, slowing down the pace of subsequent batch shipment.
Our Solution

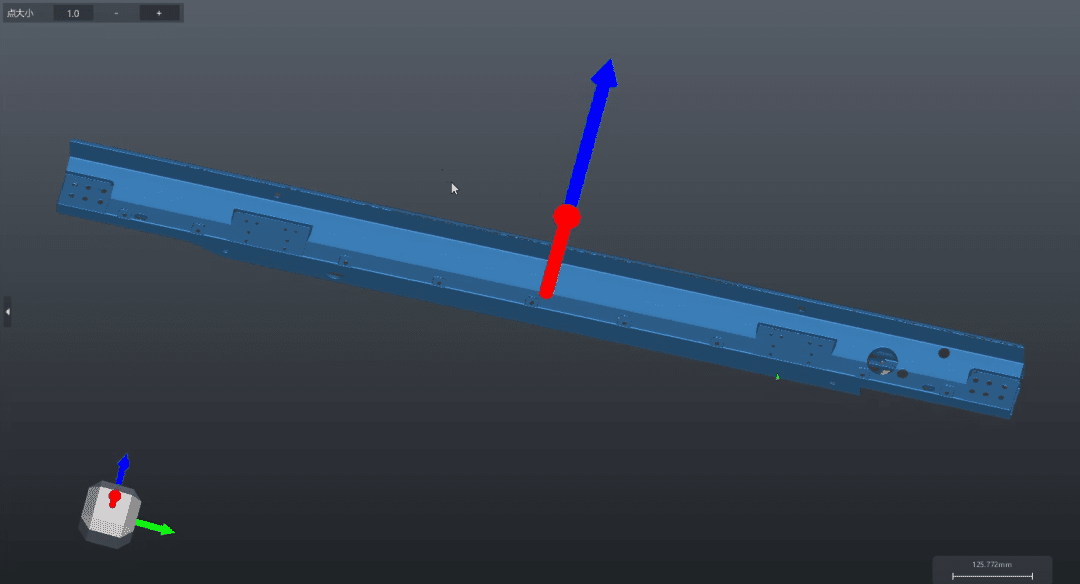

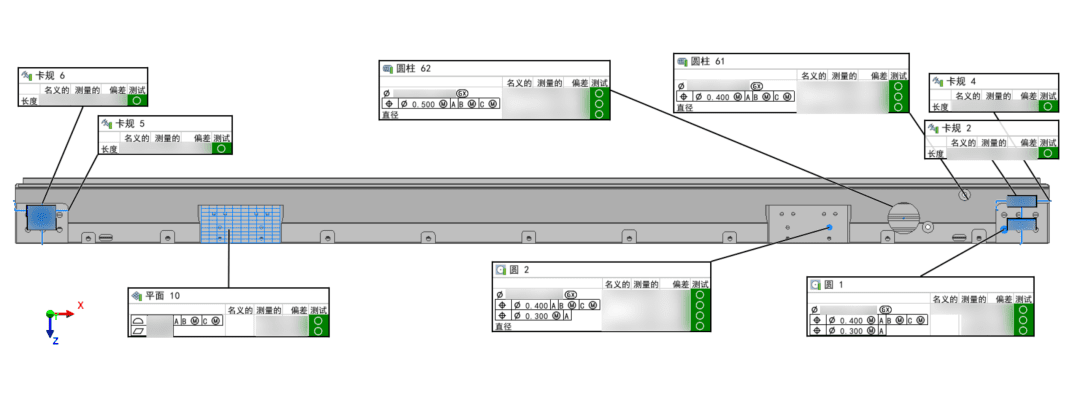

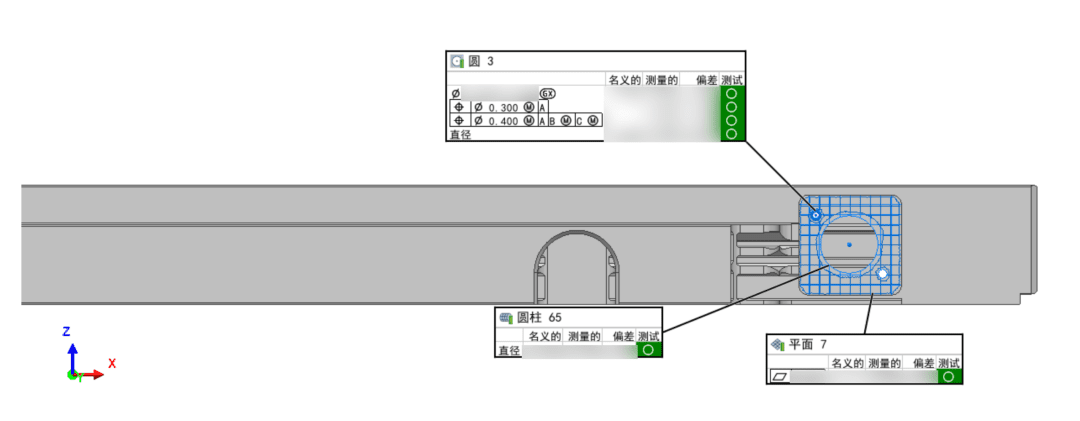

After scanning the first profile type with AlphaScan, operators can save all parameters—dimensions, tolerances, inspection areas—as a template. When the same profile type is encountered later, they simply load the existing template. After scanning, automatic comparison is performed, with pass/fail judgment automatically determined and inspection reports generated simultaneously. The operation is intuitive, with a short training period, enabling frontline staff to quickly master the process.
Results and Benefits
- Template creation on the first piece, no setup needed later: Eliminates repetitive parameter setting and equipment debugging, significantly reducing preparation time per inspection.
- Simple and efficient batch inspection: Load the template to complete inspection and comparison; multiple profiles can be inspected consecutively, with reports generated quickly.
- Improved inspection consistency: Each inspection uses the same standard, eliminating manual setup deviations and ensuring uniform judgment.
From creating a template on the first workpiece to automated batch inspection, AlphaScan frees bumper beam profile inspection from the repetitive task of “one type, one programming,” truly achieving worry-free template creation once and batch inspection thereafter.
