INSVISION × Nanjing University of Science and Technology Bosailisi E·MOTION Team: Measuring Dreams with Precision

The Formula Student China competition, hosted by the China Society of Automotive Engineers, has been held for 16 consecutive years and is hailed as th

Formula Student China

Hosted by China Society of Automotive Engineers

Held for 16 consecutive years

Hailed as the “Cradle of Future Automotive Engineers”

Every year, nearly 100 university teams

Spend a full year of time and sweat

Building their own formula race car

Finally ranked by dynamic and static scores

……

The Nanjing University of Science and Technology Bosailisi E·MOTION team, founded in 2015, is now in its 12th year of competition.

INSVISION × Nanjing University of Science and Technology Bosailisi E·MOTION Team: Measuring Dreams with Precision

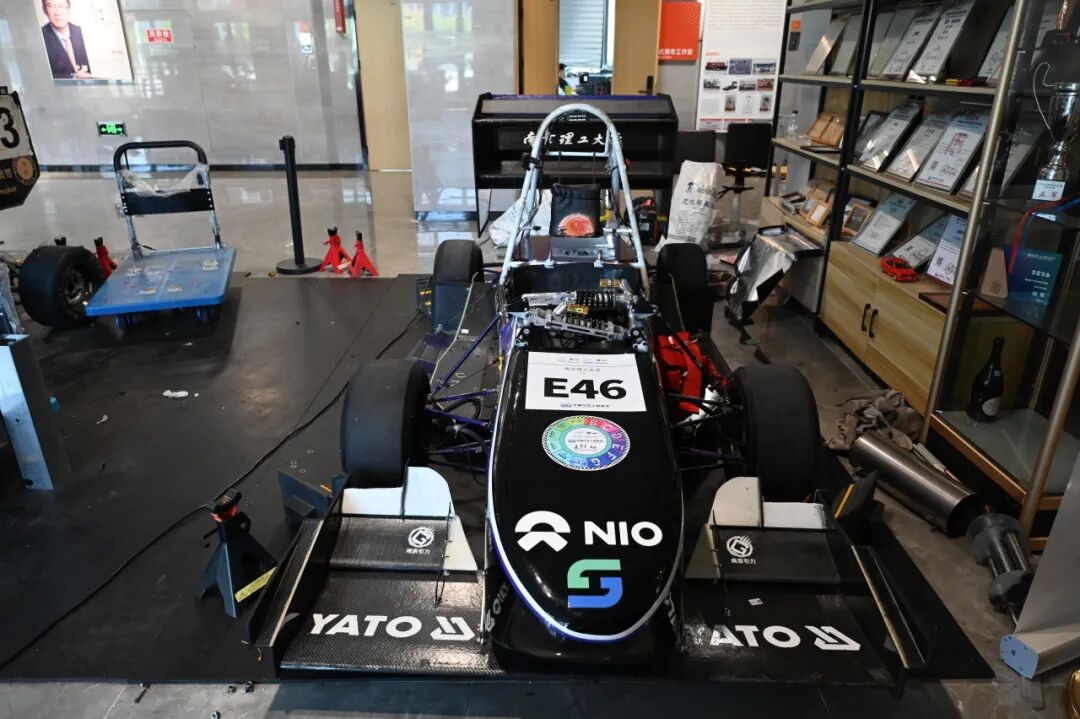

The frame of a Formula Student car uses a truss-type steel tube structure, welded from dozens of steel tubes. Due to the compact design, most component mounting positions are near their limits, placing extremely high demands on welding precision and control of welding thermal deformation.

The overall frame error must typically be controlled within millimeter level, while traditional manual measurement methods are not only time-consuming but also difficult to ensure consistency and repeatability.

During the manufacturing of the truss structure, two core technical challenges are particularly prominent: thermal deformation caused by the welding process, and positioning errors during fixture setup. Last season, the team used aluminum profiles to build fixtures, relying on tape measures and spirit levels for positioning.

Actual manufacturing results showed significant cumulative errors in the rear compartment area, directly affecting the installation and positioning accuracy of the suspension system, adversely impacting the operational stability of the vehicle chassis, and potentially introducing safety risks.

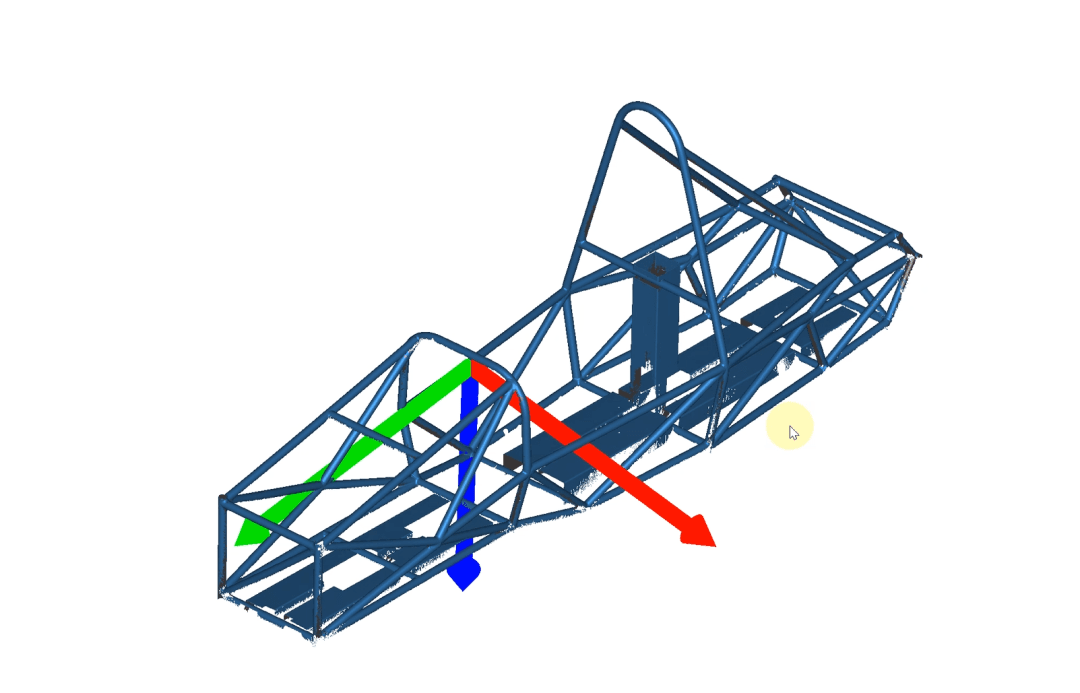

In contrast, the AlphaScan 3D scanner, featuring up to 50 cross blue laser lines, a maximum scanning speed of 7.1 million measurements per second, and industrial metrology-grade accuracy up to 0.020 mm, can efficiently capture every detail of complex structures, quickly obtain a true 3D model of the frame structure and perform precise fitting.

The color map generated from scanning allows intuitive identification of twists or positional deviations in the structure.

In automotive manufacturing, AlphaScan has been widely used throughout the entire process of dimensional inspection, deviation analysis, quality inspection, and reverse modeling.

Its companion software supports point cloud import, mesh optimization, deviation color map analysis, and one-click generation of inspection reports, outputting common formats such as STL, PLY, and TXT, seamlessly interfacing with mainstream CAD/CAM platforms, fully supporting the entire workflow from scanning to reverse modeling.

INSVISION chose to partner with the E·MOTION team.

First, brand alignment — E·MOTION represents “Passion Drives Precision,” which highly aligns with INSVISION’s brand spirit of “Measuring the World with Precision”;

Second, authentic scenarios — the needs for weld inspection, component fitting, and reverse modeling in race car manufacturing are exactly a microcosm of AlphaScan’s typical application scenarios in the automotive industry;

Third, university reach — Nanjing University of Science and Technology is a top-tier science and engineering university in China, and the team, as a campus star club, can effectively reach a large number of future engineers and researchers;

Fourth, long-term value — by engaging early in university students’ innovative practice, INSVISION can cultivate equipment awareness and usage habits among the most cutting-edge user group, laying the foundation for a future talent ecosystem.

“With the support of INSVISION’s AlphaScan this year, we hope to improve some dynamic and static presentation scores while retaining the (previous generation) design. Our goal this year is to push harder, move up 5 places, and then challenge for the national first prize.”

INSVISION × Nanjing University of Science and Technology Bosailisi E·MOTION Team

Joining hands to create, measuring dreams with precision!
