The search for a capable 3d scanner 2025 solution often highlights a critical gap: the trade-off between lab-grade accuracy and shop-floor throughput. For quality engineers managing automotive assembly takt times or aerospace MRO turnarounds, offline CMM inspection creates a bottleneck. The INSVISION AlphaScan platform closes this gap by integrating metrology directly into ISO/AS9100 workflows. It captures up to 7.1 million measurements per second, enabling immediate GD&T reporting on complex features like valve bodies or deep-hole structures. This transforms inspection from a batch-process delay into a real-time validation step, allowing you to maintain precision without sacrificing production rhythm.
Validating Precision in Handheld Form
Procurement teams often assume “AI-enhanced” implies unverified automation. INSVISION engineering counters this through its Hangzhou R&D center, where AI-driven 3D vision is anchored by physical benchmarks. A key milestone was the February 2025 completion of accuracy certification against standardized calibration artifacts. This technical rigor underpins CE, FCC, and CNAS certifications, facilitating global deployment. For quality managers, this means a 3d scanner 2025 platform backed by a verifiable framework, not just marketing claims. Stated accuracies like 0.073mm apply under specific boundary conditions, including controlled optical environments and proper calibration protocols. Quality managers should verify these conditions match their production environment before deployment.
Architecture for Complex Field Metrology
The demand has shifted from simple digitization to rigorous quality control for large, complex assemblies. The INSVISION AlphaScan meets this with 50 crossed blue laser lines, a volumetric accuracy of 0.1mm ±0.015mm/m, and a 2200x2200mm scan area. Its architecture suppresses the cumulative drift that plagues large workpiece scanning by using photogrammetric scale bars to establish a stable global coordinate system. This is critical for maintaining tolerance integrity on a full aircraft wing skin or automotive frame. This 3d scanner 2025 platform handles challenging surfaces—deep-black composites or polished turbine blades—where traditional scanners fail with noise. Success depends on matching this capability to your specific part geometries and surface conditions.
Field-Proven on Internal Geometries and Assemblies

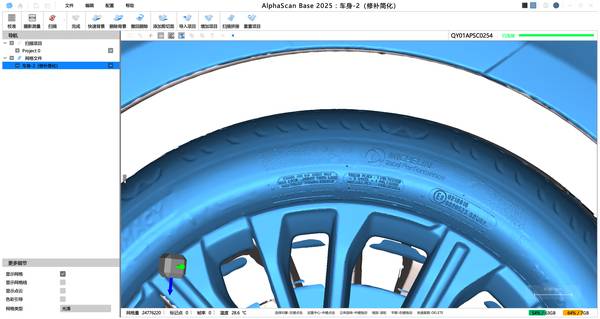

External surfaces are one challenge; hidden internal geometries are another. Field validations demonstrate the AlphaScan capturing complete wheelset data—treads, flanges, diameters—within minutes. It accurately resolves internal cylindrical and deep-hole structures, provided operators maintain correct laser incidence angles and consistent pacing. The subsequent workflow is streamlined: raw scan data is processed through 3D inspection software for CAD alignment, generating a color-mapped deviation heat map or a cross-sectional point cloud analysis. This culminates in one-click GD&T reporting, turning dense data into actionable pass/fail metrics for valve housings or additive manufacturing parts.
Implementing for Production Readiness
The final challenge is seamless integration. INSVISION supports this through six domestic service hubs and international teams in over 20 countries, offering 24-hour technical response focused on post-deployment validation. Before rollout, quality teams must assess key site variables: control ambient lighting, establish protocols for reflective surfaces common in aerospace components, and align operator training rhythms with data integrity goals, not just speed. For large workpieces, a technician using scale bars during setup is essential to minimize volumetric error. Ultimately, success hinges less on the scanner itself and more on meticulously mapping these variables to your specific production and inspection rhythms.
To evaluate if this 3d scanner 2025 solution fits your workflow, consider your most challenging part: what is its size, material, and tightest tolerance requirement? How does your current inspection process disrupt production takt time? What format does your quality reporting need?
