Video Overview

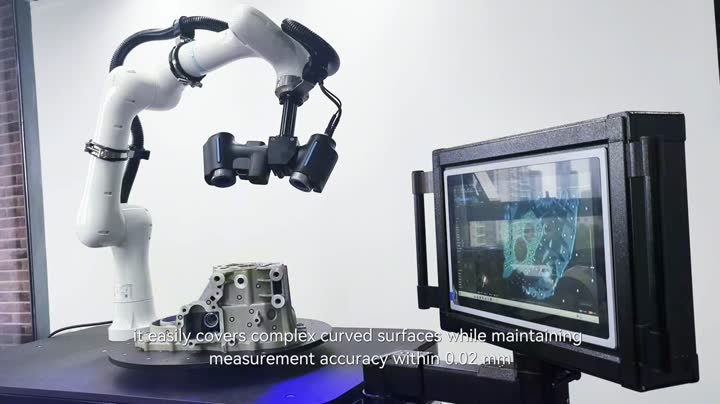

The video shows a white collaborative robotic arm mounted on a black equipment table, with a 3D scanning head at its end. The robotic arm drives the scanning head to emit blue structured light to scan silver metal workpieces placed on a rotating turntable, with the scanning head's blue light turning on and off repeatedly during the process. A matching industrial display terminal positioned beside the equipment synchronously displays the generated 3D scan model of the workpiece, and the 3D measurement software interface shows measurement data of the workpiece's cylindrical features.
This automated scanning system performs scanning operations without manual handheld input, enabling continuous scanning of workpieces placed on rotating turntables. It applies to industrial inspection, intelligent manufacturing, and industrial measurement scenarios, covering use cases such as workpiece 3D inspection and 3D digital model generation.
Application Scenarios
This video demonstrates the full automated workflow of the AlphaAutoScan 400 3D scanning system for industrial metal workpiece scanning and measurement.
Key Details
- Collaborative robotic arm mounted 3D scanning head display
- Blue structured light scanning of metal workpieces on rotating turntable
- Real-time 3D model display on industrial terminal
- Workpiece feature measurement data display in scanning software
